Our thermal insulation block for the Henning scaffolding permanent anchor

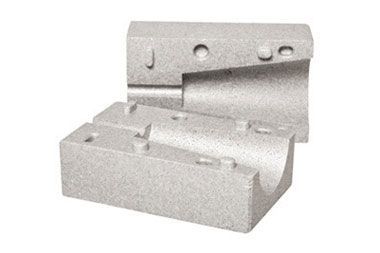

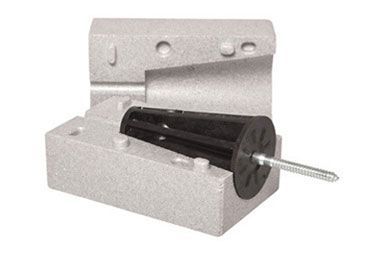

The EPS thermal insulation block, which accommodates our scaffolding permanent anchor inside and thus makes its fitting into the thermal insulation composite system much easier for thermal insulation operations, is made of grey Neopor EPS with a WLG032, which allows for integration into all common facade insulation systems from WLG032 - WLG040.

The insulation blocks have been developed for the insulation range 140 - 300 mm.

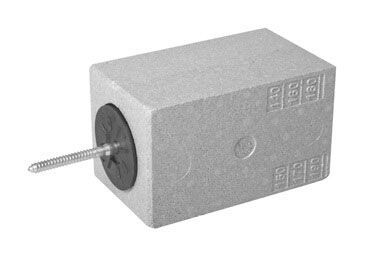

They can be shortened to the desired insulation thickness according to the embossed scale. The insulation block not only eliminates the need to work on the permanent anchor, but also on the eye bolt, as the insulation block has a 12 mm passage for the eye bolt, which in turn can be closed and sealed professionally by our closing cap during scaffold dismantling.

8 advantages at a glance:

  1. Fast and inexpensive processing of the anchor in ETICS
  2. Easy handling: the insulation block is placed exactly over the anchor
  3. Ideal adjustment minimizes thermal bridges
  4. Three insulation blocks for sizes 140 / 200 / 260 mm in ETICS
  5. Three insulation blocks for all thermal conductivity groups from WLG032 - WLG040
  6. encloses the eye bolt of the anchor with a perfect fit
  7. Abs the sealing cap with an exact fit
  8. Perfect system solution: Permanent scaffold anchor, insulation block, sealing cap, eye bolt and fastening

Technical data Dimensions 200 / 260 / 300 mm total length, WDVS range 140- 300 mm

Material: EPS / Neopor grey WLG032.

L x H x D 120 mm x 120 mm x 200 mm
for the framework permanent anchor 140 mm

L x H x D 145 mm x 145 mm x 260 mm
for the framework permanent anchor 200 mm

L x H x D 180 mm x 180 mm x 300 mm
for the framework permanent anchor 260 mm
